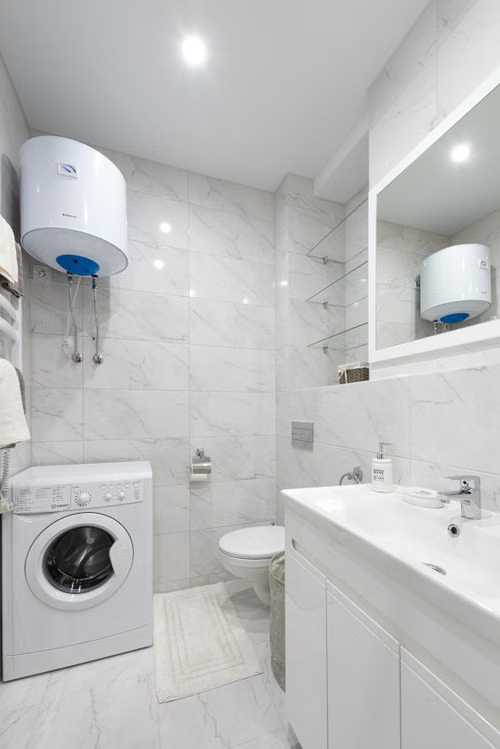

The Electrical Work Behind a New Electric Water Heater Installation

A cold shower at six in the morning has a way of ruining the whole day. So when a water heater electric finally quits, most people want the new one up and running quickly. The tank gets all the attention. The wiring behind it does the quiet work, and that wiring decides whether your new unit runs safely or trips the breaker on day one.

A water heater electric is one of the biggest power draws in a normal home. It needs its own path back to the panel, sized correctly, or the setup becomes a slow hazard hidden inside the wall. Here is what that electrical work covers, and why it matters more than the box on the showroom floor.

Why an Electric Water Heater Needs Its Own Circuit

An electric tank runs on 240 volts, double the voltage of a standard household outlet. It pulls a strong current for long stretches while heating, sometimes for hours at a time. A circuit like that has to run on its own, straight from the panel to the unit, with nothing else sharing the line.

The National Electrical Code treats any fixed appliance drawing more than 12 amps as a load that needs its own dedicated circuit. Share that line with lights or outlets, and the circuit overloads, and the breaker starts tripping when other things run at the same time. Worse, undersized wire can overheat before the breaker reacts, and warm wire inside a wall is how house fires begin. That is why a dedicated circuit is not a luxury. It is the part that keeps the rest of your home safe.

What the Electrical Work for an Electric Water Heater Involves

Most of the job happens before the tank ever gets filled. A clean install usually covers a handful of electrical steps:

a dedicated 240-volt circuit run from the panel to the heater
a correctly sized double-pole breaker that disconnects both hot legs at once
the right gauge of copper wire to match that breaker
a grounding conductor bonded to the unit, as the code requires
a disconnect within sight of the heater, or a breaker that can lock open

Each step sounds small on its own. Skip one, and the unit might still run for a while, which is exactly what makes a bad installation dangerous. It works today and fails later, often at the worst possible moment.

Breaker Size and Wire Gauge for Your Tank

A standard residential tank uses a 4,500-watt element, which works out to about 18.75 amps at 240 volts. The code adds a safety margin on top, since the heater counts as a continuous load and the breaker must be sized at 125 percent of that draw. That math lands on a 30-amp double-pole breaker paired with 10-gauge copper wire. Manufacturer manuals say the same thing.

Rheem bases its branch-circuit and wire-size charts on the National Electrical Code, and those charts list 10-gauge wire with a 30-amp breaker for 4,500 to 5,500-watt units. Step up to a 6,000-watt model, and both the breaker and the wire step up with it. This is why a 30-amp breaker on thin 12-gauge wire is such a common, dangerous shortcut. The wire can overheat before the breaker ever trips.

When Your Electrical Panel Needs Work First

Sometimes the heater is the easy part, and the panel is the problem. A new dedicated circuit needs an open slot and enough spare capacity to carry the added load. Plenty of older Phoenix homes still run on 100-amp service, or a panel that filled up years ago. Add a water heater circuit to a box already near its limit, and you have asked too much of it.

Why Phoenix Homes Pushes Electrical Systems Harder

Phoenix adds its own pressure to all of this. Summer makes the air conditioning for months, and that load already sits heavy on the panel before a water heater circuit joins it. On a 115-degree afternoon, a panel that felt fine in spring can be working near its ceiling. Local code piles on a few more steps.

Around the Valley, inspectors routinely look for the hot and cold water lines and gas piping to be bonded with a 6-gauge wire. That bonding stops a faulty circuit from energizing your plumbing. Hard water wears tanks out faster here, too, so a fair number of homeowners hit this install sooner than they planned. None of it is hard to handle. It just needs someone who knows the local rules.

A new electric water heater is worth doing once and doing right. George Brazil has installed and wired them across the Phoenix area for decades, with licensed plumbers and electricians on the same truck. Call or book online, and ask about same-day service when you reach out before noon. You get hot water that simply works, and a circuit you never have to think about again.
